In the heart of Manama’s industrial landscape, Niazi Stainless stands as a trusted partner for robust and reliable engineering solutions. We specialize in providing high-performance Stainless Steel 17-4 PH Fasteners, a product line renowned for its exceptional strength and corrosion resistance. Our commitment is to supply engineers and industries across Bahrain and beyond with components that not only meet but exceed the demanding requirements of their most challenging applications, ensuring longevity and unwavering performance in even the harshest environments.
The exceptional quality of 17-4 PH fasteners stems from a carefully balanced composition, primarily chromium and nickel, with the crucial addition of copper and niobium. This unique recipe allows these fasteners to be heat-treated, a process that dramatically enhances their mechanical properties. The result is a remarkable combination of very high tensile strength and impressive hardness, all while maintaining good corrosion resistance, making them significantly stronger than standard stainless steel grades like 304 or 316.
| Specifications | ASTM A 193 / ASME SA 193 |
| Standard | DIN, ISO ,JIS ,GB, IS, BS, ASTM and all International Standards |
| Size | M3 – M100 | 3/6″ – 4″ | Custom Sizes |
| Fasteners Length | 3 mm – 200 mm | Custom Sizes |
| Nuts Size | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Washers Size | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Threads available | UNF, BSW, BSF, METRIC, UNC, or as required |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Form | Hex, Threading, Square, Round as per Gauge Etc. |
| Head | Hex, Square, Round, Hex flange, Flat, T-head & Triangular etc. |
| Neck type | Hex, Square, Triangular, Oval & Knurled etc. |
| Surface Coating | Black Oxide, Cadmium, Galvanized, Teflon, Xylan, Zinc, Others Upon Request |
| Manufacturing Process | Wire Drawing, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing. |
| Grade | C | Cb+Ta | Cr | Cu | Fe | Mn | Ni | P | S | Si |
| SS 17-4 PH | 0.07 max | 0.15-0.45 | 15.00-17.50 | 3.00-5.00 | Bal | 1.0 max | 3.0-5.0 | 0.40 max | 0.03 max | 1.0 max |
Contact us to get a quick quote for your requirement.

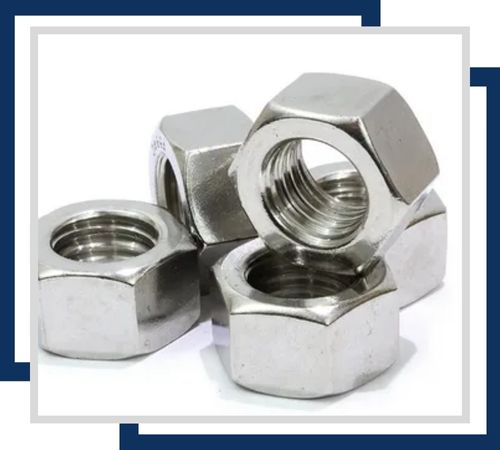

Stainless Steel 17-4 PH Nuts Known for excellent corrosion resistance, Stainless Steel 17-4 PH nuts are typically used in aerospace and industrial applications. They come in various sizes. Usually, the dimensions are M2 to M36 and conform to standard nut sizes.

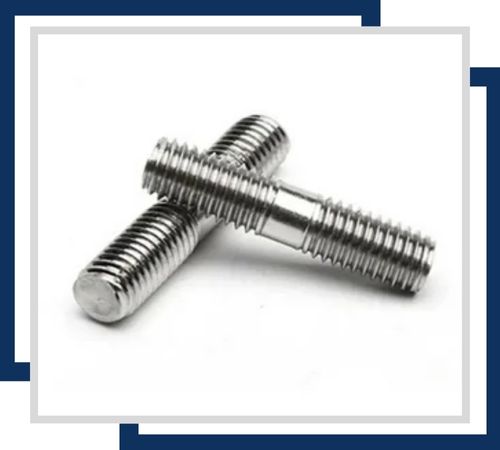

17-4 PH stud bolts are ideal for high-stress environments and offer high corrosion resistance. Depending on application requirements, they are available in sizes ranging from M4 to M30, with lengths varying from 20mm to 1000mm.

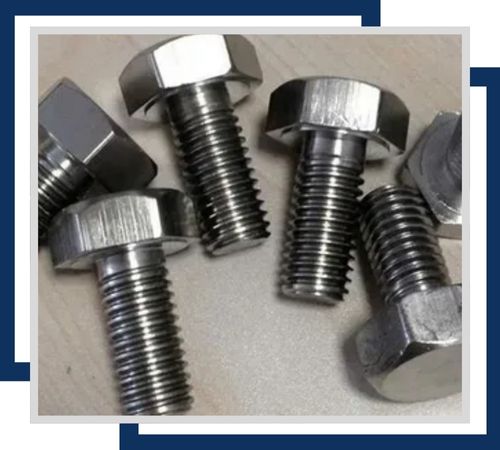

These bolts provide strong corrosion resistance and are commonly used in structural applications. Available in sizes from M5 to M36, with standard lengths ranging from 10mm to 200mm, they meet various industrial and military standards.

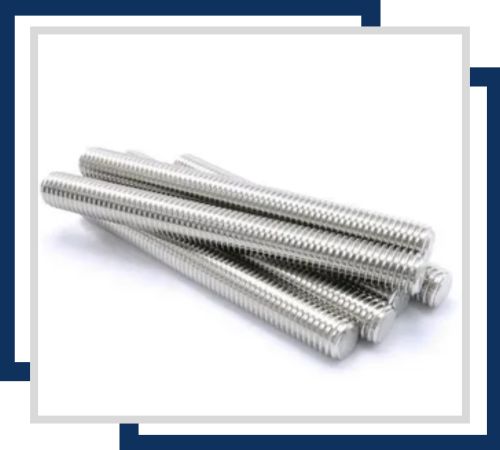

Stainless Steel 17-4 PH threaded rods Known for excellent corrosion resistance, 17-4 PH threaded rods are used in high-strength applications. They are available in diameters from M6 to M36 and lengths from 100mm to 3000mm, suitable for various structural needs.

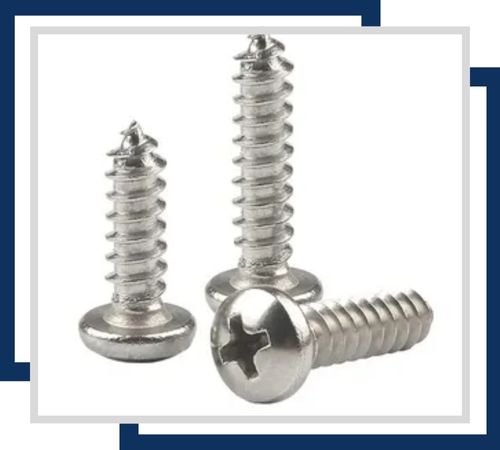

Offering high corrosion resistance, 17-4 PH screws are suitable for harsh environments. They come in sizes from M2 to M16, with lengths from 6mm to 100mm, meeting diverse application standards.

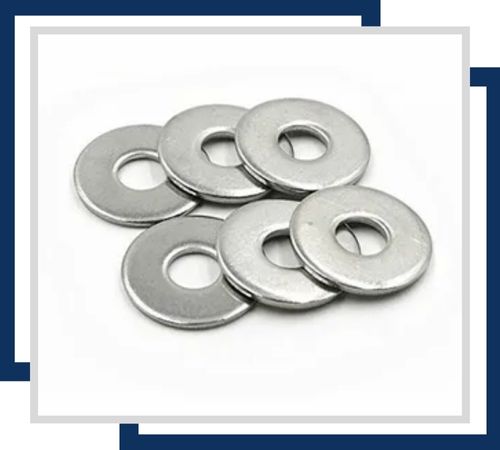

These washers are highly corrosion-resistant, making them ideal for marine and aerospace applications. Available in diameters from M3 to M36, they come in various thicknesses to fit different bolt sizes.
Stainless Steel 17-4 PH Fasteners are rigorously tested by us for their quality and reliability. The tests involve verification of the material composition, mechanical property checks, and assessments of the dimensions. Also third-party inspections can be offered for extra assurance when needed. With a strong focus on quality and efficiency we ensure swift delivery of our fasteners according to different industry requirements keeping the highest standards of performance and customer satisfaction.
Because of their remarkable strength-to-weight ratio and durability, 17-4 PH fasteners are indispensable in demanding fields. You’ll find them securely fastening critical components in aerospace frames, jet engines, and landing gear. They are equally vital in the oil and gas industry for wellhead equipment, and in chemical processing plants where strength and resistance to corrosive substances are paramount. Their reliability also makes them a preferred choice for high-stress automotive parts, surgical instruments, and even components within nuclear power facilities.
