Nestled in the industrial heart of Manama, Niazi Stainless stands as a trusted partner for critical material needs, specializing in high-performance alloys. Among our key offerings are Stainless Steel 17-7 PH Pipes, engineered for applications where standard stainless steels fall short. We provide a reliable supply chain for this versatile material, ensuring our clients get the exact specifications required for their challenging projects, backed by deep industry expertise and a commitment to quality that has defined our reputation over the years.
The composition of 17-7 PH stainless steel is a careful balance, primarily containing chromium and nickel, but its defining characteristic is the addition of phosphorus and aluminum. This specific formula allows the material to be heat-treated, resulting in exceptional mechanical properties. Through this process, the pipes develop remarkable strength and hardness, offering a great strength-to-weight ratio. They maintain good toughness and can be heat-treated to achieve various strength levels, tailored to specific environmental demands and load requirements.
| Standard | 17-7PH / 1.4568 |
|---|---|
| Size | 1/8” to 48”, Seamless Pipes up to 24” |
| Designation | ASTM A312, ASME SA312, ASTM A269, ASTM A213, ASTM A249, ASTM A270, ASTM A511, ASTM A554, ASTM A778, ASTM A908, ASME SA249 |
| Thickness | 0.4mm up to 30.00 mm, Schedules 5, 10S, 10, 30, 40S, 40, 80, 80S, XS, 160, XXH |
| Type | Seamless, Welded, Cold Drawn, Structural, Hot Finished, Extruded, Annealed & Pickled |
| Form | Round, Square, Rectangular |
| Length | Standard 6-6.1 meter length, 20 Ft, Custom Cut Lengths |
| Application | Variety of springs and washers, Chemical processing equipment, Heat exchangers, Power boilers, Superheater tubes, Components used in high-strength/high-temperature conditions. |
| Element | Content (%) |
|---|---|
| Chromium, Cr | 16-18 |
| Nickel, Ni | 6.50 – 7.75 |
| Manganese, Mn | 1 max |
| Silicon, Si | 1 max |
| Aluminum, Al | 0.75 – 1.50 |
| Carbon, C | 0.09 max |
| Phosphorous, P | 0.040 max |
| Sulfur, S | 0.030 max |
| Iron, Fe | Balance |
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength | 1170 MPa | 170000 psi |
| Yield strength | 965 MPa | 140000 psi |
| Modulus of elasticity | 204 GPa | 29600 ksi |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
| Elongation at break | 6% | 6% |
| Hardness, Rockwell C | 38 | 38 |
Contact us to get a quick quote for your requirement.
We tests Stainless Steel 17-7 PH pipes to the utmost extent to assure superior quality and performance. All batches are strictly inspected, and mechanical property tests, corrosion resistance checks, and dimensional accuracy checks are performed on each batch. Pipes are supplied with test certificates that are in compliance with industrial standards.

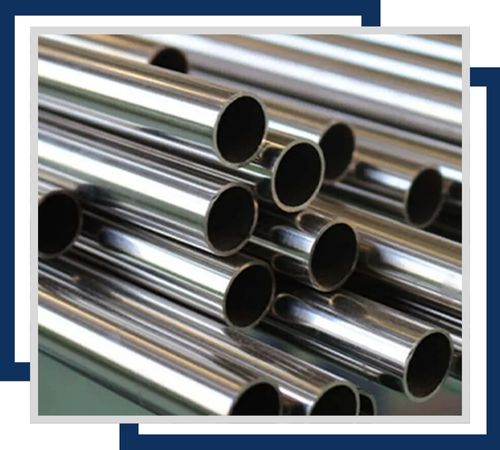

High-quality 17-7 PH stainless steel pipes offer exceptional strength, corrosion resistance, and durability. Perfect for demanding industrial applications, they provide reliable performance in extreme conditions and harsh environments.

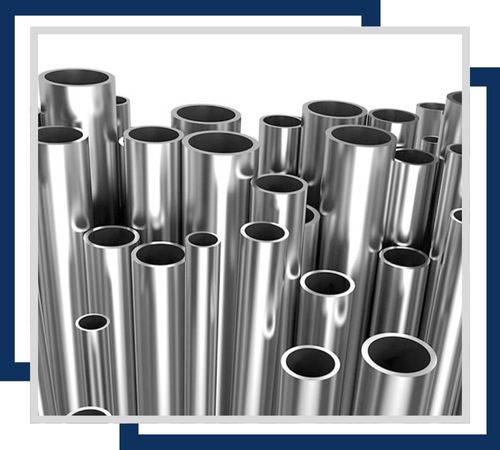

ASTM A312 SS 17-7 PH ERW pipes deliver outstanding strength and corrosion resistance. Ideal for high-stress applications, they ensure durability and reliable performance in challenging industrial environments and applications.

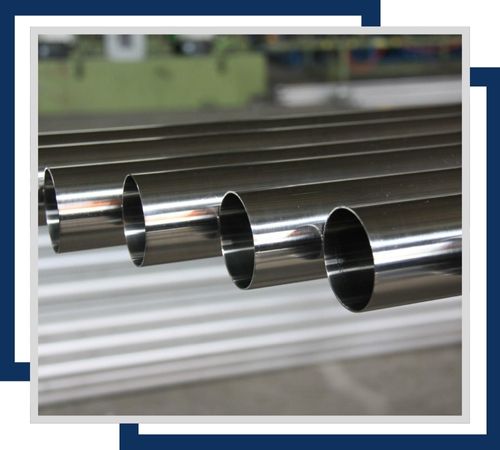

Stainless Steel 17-7 PH capillary pipes offer superior strength and corrosion resistance. Ideal for precision applications, they ensure reliability and durability in demanding environments, combining high performance with long-lasting quality.

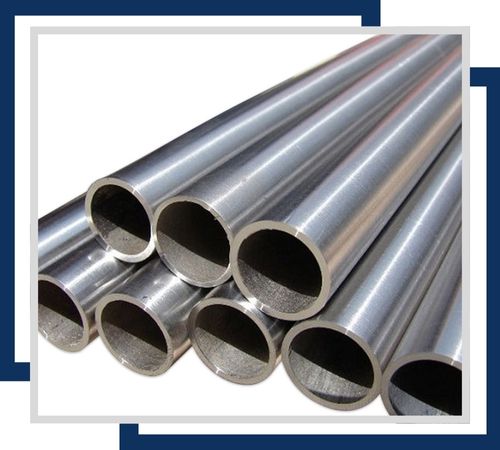

SS 17-7 PH spiral welded pipes offer high strength and corrosion resistance, ideal for aerospace and industrial applications. Their spiral weld construction enhances durability and performance in demanding environments.

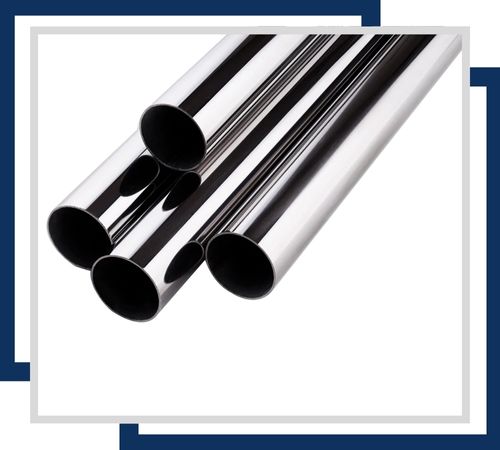

17-7 PH SS electropolished pipes offer superior corrosion resistance and a smooth finish. Ideal for sanitary and high-performance applications, they provide enhanced durability and reliability in demanding environments.
SS 17-7 PH slot round pipes feature exceptional strength and corrosion resistance with precision slots. Ideal for structural and filtration applications, they ensure durability and high performance in demanding conditions.
You’ll find 17-7 PH stainless steel pipes hard at work in demanding environments like aircraft components, where their strength and light weight are critical. They are also essential in machinery for parts like Bellows and instrumentation, and in chemical processing for their corrosion resistance. Their durability makes them suitable for various mechanical and structural applications, especially where high strength is required within a compact, lightweight form factor, proving their versatility across multiple industries.
