Nestled in the industrial heart of Manama, Bahrain, Niazi Stainless stands as a trusted name for top-tier steel solutions. We are proud manufacturers and suppliers of Stainless Steel 304H Sheet and Plates, providing clients with materials known for their superior strength and resilience. Our commitment lies in delivering products that meet the highest standards of quality, ensuring that every sheet and plate supports the ambitious projects our customers build, big or small.
Crafted from a precise composition of Chromium, Nickel, and a slightly elevated Carbon level, the Stainless Steel 304H variant exhibits enhanced strength, especially at high temperatures. This specific composition grants it excellent mechanical properties, including good tensile strength and superior resistance to creep. Essentially, this material is engineered to perform reliably in demanding environments, holding its shape and integrity even when the heat is on.
| Standard | ASTM A240, ASME SA240 |
| Thickness | 0.1mm to 12 mm Thk |
| Sheet and Plate Size | 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm |
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sandblast, Brush, etching. |
| Finish | Hot rolled (HR), Cold rolled (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated), Galvanized etc. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304H | 0.10 max | 2.0 max | 0.75 max | 0.045 max | 0.03 max | 18 – 20 | – | 8 – 10.5 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40 % |
Contact us to get a quick quote for your requirement.

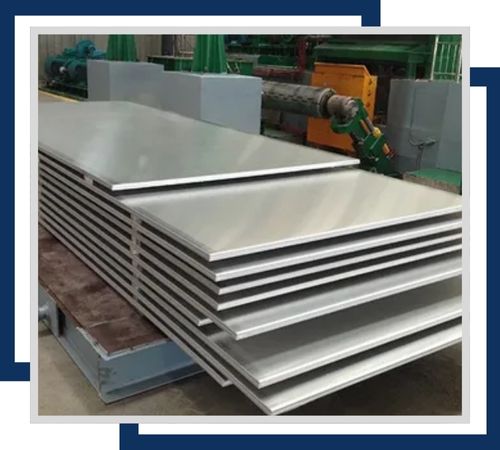

They come in dimensions ranging from 3mm up to 150mm thick, and up to 2000mm wide. Hot-rolled sheets are excellent in strength, ideal for structural applications.

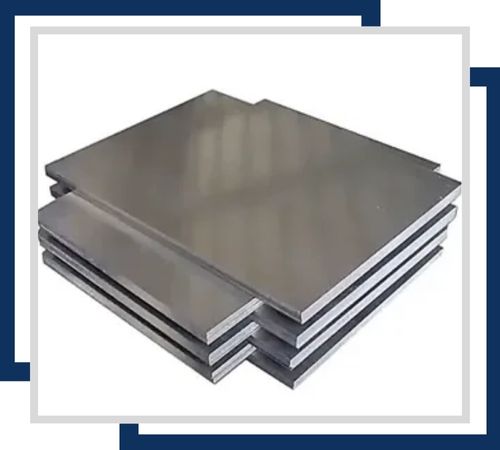

Cold-rolled sheets have a thickness of between 0.3mm to 6mm, and their widths can reach up to 1500mm. They can give a fine surface finish, as well as very accurate dimensioning, perfect for precision applications and fabrication.

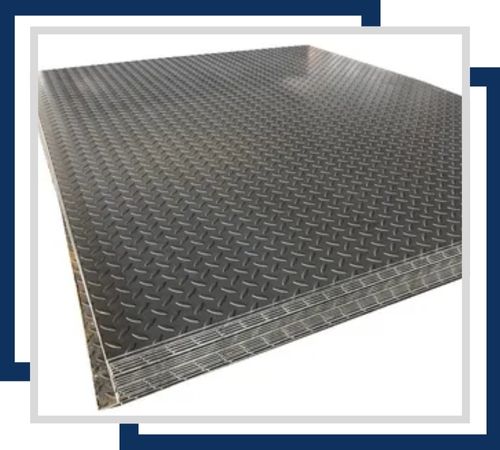

These sheets range from 1mm to 12mm in thickness. The texture on them is what gives them their anti-slip surface. They are mainly used in flooring and industrial platforms.

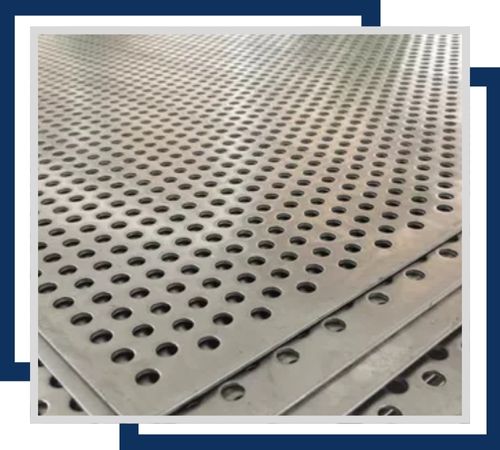

These sheets mainly range between 0.3mm and 12mm in thickness. Due to the uniform perforations, they are widely applied in applications such as filtration, ventilation, and decorative purposes.

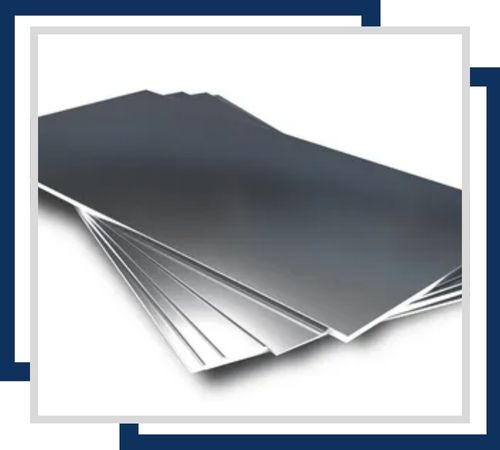

The range in thicknesses for these thin sheets varies from 0.05mm to 3mm and finds applications in precise adjustments and alignment during a machinery component or structural component.

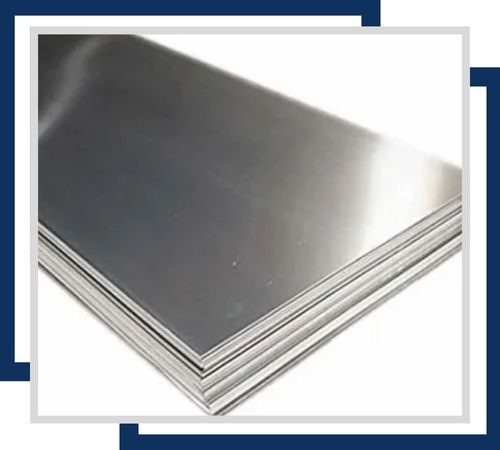

Polished sheets are available from a thickness of 0.3mm to 6mm, providing a reflective finish, and find applications in aesthetic applications and architectural designs.
Niazi Stainless offers an excellent customer experience with strong documentation for our premium Stainless Steel 304H Sheets and Plates. The necessary documents that accompany our product are commercial invoices, packing lists, fumigation certificates, heat treatment charts, quality assurance plans, and NABL-accredited lab test reports. These documents prove the authenticity and exceptional quality of our products, thereby building trust and confidence among our esteemed customers. In addition, we offer a variety of test certificates with our Stainless Steel 304H Sheets and Plates, including MTC according to EN 10204/3.1b, PMI Test Certificates, 100% radiography test reports, and Third Party Inspection Certificates. These accreditations emphasize our commitment to customer satisfaction and our relentless drive for excellence in product quality.
The unique strength of 304H makes these sheets and plates a top choice for demanding roles where heat is a primary factor. They are extensively used in high-temperature applications like industrial furnace linings, heat exchangers, pressure vessels, and various heavy-duty components. From the structural framework of large-scale plants to the fabrication of essential equipment across diverse sectors, its durability and performance remain consistent, making it a foundational material for modern engineering.
