For businesses in Manama and beyond seeking exceptional structural integrity and lasting performance, Niazi Stainless stands as your trusted partner. Based right here in Bahrain, we specialize in manufacturing and supplying premium Stainless Steel 316/316L Channels. Our commitment is to provide materials that not only meet the highest industry standards but also endure the demanding environments typical of our region, ensuring your projects are built on a foundation of quality and reliability.
The strength of these channels begins with their sophisticated makeup. The key distinction lies in the composition; 316L has a lower carbon content, making it ideal for welding and high-temperature scenarios. Both grades are enhanced with molybdenum, which significantly boosts their resistance to corrosive elements like chlorides and acids. This results in a material with excellent toughness, high tensile strength, and the ability to perform reliably under stress in challenging conditions.
| Standard | ASTM A276, ASTM A479 / ASME SA276, ASME SA479 |
| Condition | HRAP |
| Size Range | Base: 80 to 150 mm Side: 40 to 75 mm |
| Thickness | 5 to 6 mm (depending on size) |
| Grades | 304, 316 |
| Processing | Bar cutting |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni |
|---|---|---|---|---|---|---|---|---|
| SS 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 11 |
| SS 304L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.03 max | 18 – 20 | – | 8 – 13 |
| SS 316 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 |
| SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 1.0 max | 16.00 – 18.00 | 16.00 – 18.00 | 10.00 – 14.00 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.

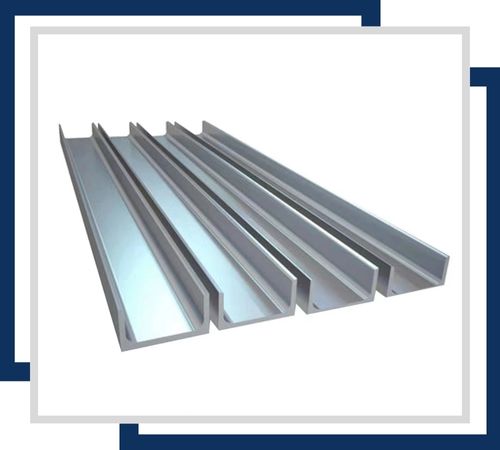

Stainless Steel 316/316L channels are structural elements made from corrosion-resistant stainless steel. They provide high strength and durability, ideal for marine, chemical, and high-temperature applications.

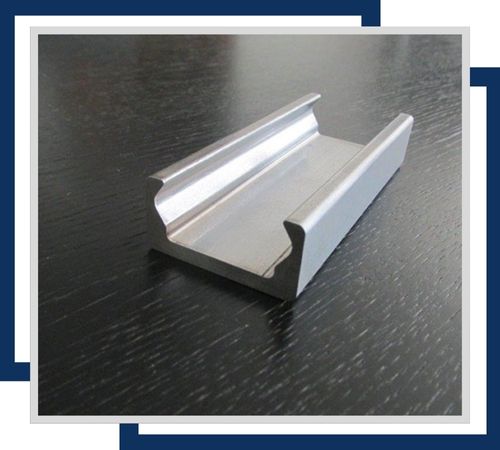

SS 316/316L C channels are stainless steel sections shaped like a “C,” offering high strength and superior corrosion resistance. They are used for support and framing in demanding environments.
Stainless Steel 316/316L U channels are structural components with a “U” shape, known for excellent strength and corrosion resistance. They are used in marine, chemical, and high-temperature environments for support and reinforcement.

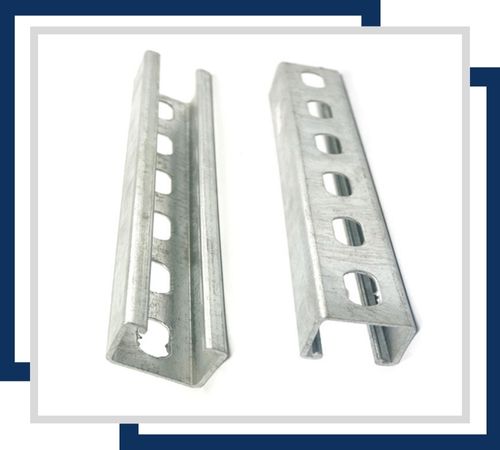

SS 316/316L strut C channels are stainless steel sections with a “C” shape, designed for robust support and framing. They offer high strength, durability, and excellent corrosion resistance for industrial applications.

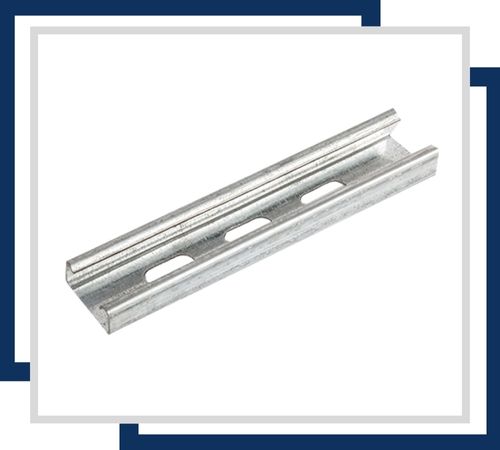

SS 316/316L cold-rolled Unistrut channels are stainless steel channels produced through cold rolling. They offer high strength, excellent corrosion resistance, and are used for versatile support and framing in demanding environments.

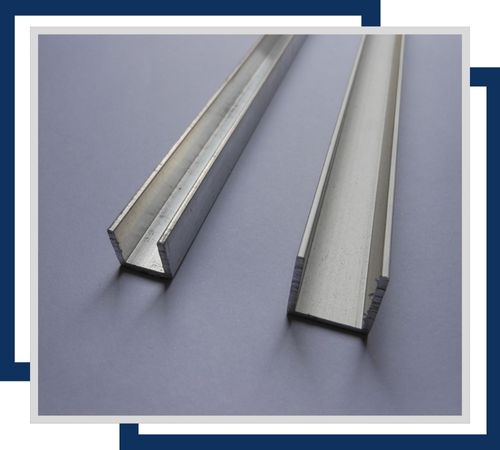

SS 316/316L double C type channels are stainless steel sections with two “C” shapes back-to-back. They provide enhanced strength and stability, suitable for heavy-duty support and structural applications in harsh environments.
Each Stainless Steel 316/316L Channel is carefully packed with the use of best materials for its prevention from undergoing damages upon corrosion whether in processing or during shipping to its destination. Packing the materials as such, we always see to it that our orders reach our customers in the best possible and timely way due to available transport systems and modes. Requisite accompanying documentation all highest will be handed over to customers as soon as delivery is accomplished to make the deal seem smooth and transparent.
Because of their superior qualities, Stainless Steel 316/316L Channels are indispensable across numerous sectors. They form the sturdy backbone of modern architecture, chemical processing plants, and offshore marine structures. You will frequently find them in the construction of support frames, walkways, and equipment where exposure to saltwater or harsh chemicals is a concern. Their durability also makes them a preferred choice for food and pharmaceutical processing facilities, where hygiene and cleanability are just as important as structural strength.
