Strategically based in Manama, Bahrain, Niazi Stainless has built a strong reputation as a trusted partner in the industrial supply chain, specializing in high-performance materials. Our focus on Stainless Steel 316Ti fasteners is a direct response to the demanding needs of the regional market, where durability and corrosion resistance are not just preferences but necessities. We are committed to providing clients with reliable components that stand up to harsh environments, ensuring the longevity and integrity of your most critical projects from the ground up.
The strength of 316Ti lies in its sophisticated composition, which introduces titanium to the classic 316 stainless steel formula. This crucial addition stabilizes the alloy against sensitization, dramatically reducing the risk of carbide precipitation during welding or high-temperature exposure. The result is a fastener that maintains exceptional mechanical properties, including high tensile strength and excellent creep resistance, even when subjected to intense heat, ensuring it won’t easily weaken or deform under demanding operational conditions.
| Standard | ASTM F593, F594, F1554 / ASME SF593, F594, F1554 |
| Bolt / Screw Size | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Nuts Size | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Washers Size | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Machine Screws Size | M1.6 – M12 |
| Self Tapping Screw Size | No.2 – No. 14 |
| Length | 3 mm to 200 mm |
| Studs, Bolts, Threads | UNF, BSW, BSF, METRIC, UNC, or as required |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Test Certificate of Bolting | as per EN 10204 / 3.1 Manufacturer Test Certificate |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 316Ti | 0.08 max | 2.0 max | 0.75 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.395 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.

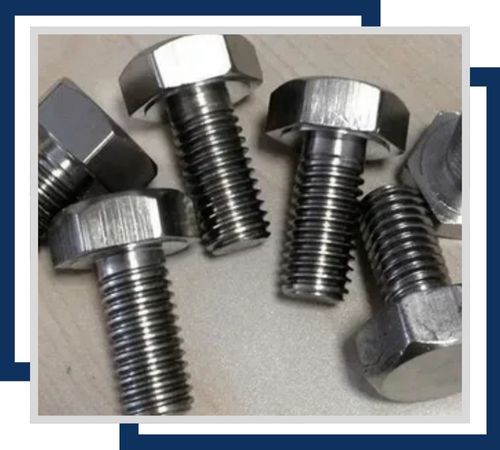

Corrosion-resistant and highly durable, Stainless Steel 316Ti Bolts are ideal for high-temperature and marine applications. Available in sizes ranging from M6 to M30, with lengths up to 300 mm. They offer excellent resistance to pitting and crevice corrosion.

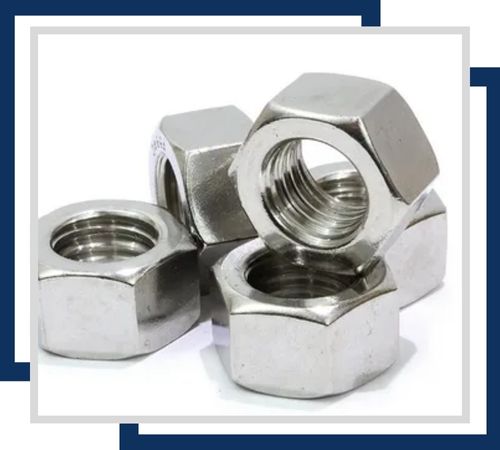

SS 316Ti Nuts are designed for exceptional corrosion resistance, especially in chloride environments. Typically available in sizes from M6 to M30, with various thread pitches. They complement 316Ti bolts and are used in high-temperature and aggressive environments.

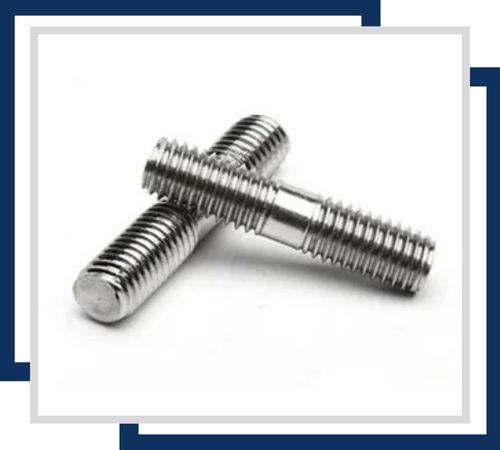

Offering superior resistance to corrosion and high strength, these Stud Bolts come in sizes from M6 to M30, with lengths ranging from 50 mm to 300 mm. Ideal for use in severe service conditions where high tensile strength is needed.

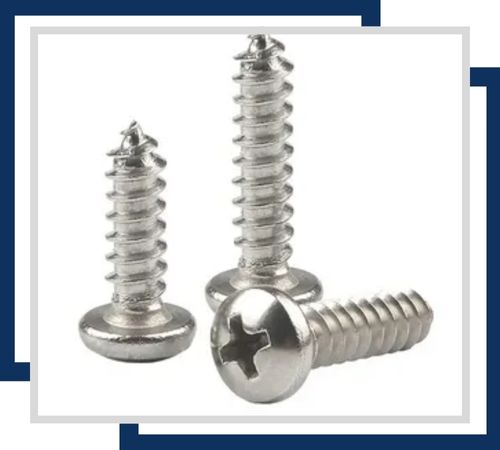

Known for their corrosion resistance, these screws are used in marine and industrial applications. Available in sizes from M2 to M20, with lengths up to 200 mm. They provide reliable performance in environments exposed to chemicals and saltwater.

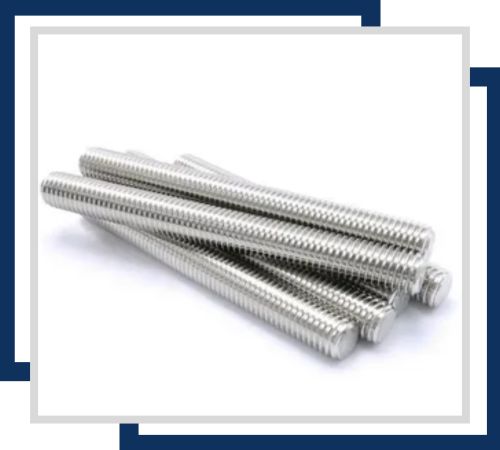

Corrosion-resistant and high-strength, these rods are available in diameters from M6 to M30 and lengths up to 3 meters. They are used in construction and industrial applications where resistance to harsh environments is critical.

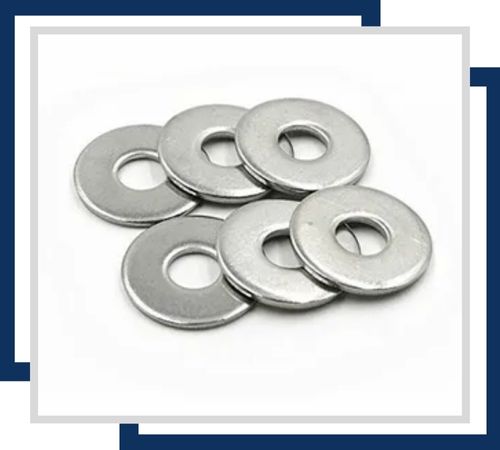

Offering excellent resistance to corrosion, these washers are available in sizes from M6 to M30. They ensure even load distribution and prevent damage to surfaces. It is ideal for use with 316Ti bolts and nuts in aggressive environments.
Our expertise in packaging Stainless Steel 316Ti fasteners carefully in Manama and Bahrain. While considering wooden boxes, pallets, and eco-friendly packing materials, we are very meticulous in using high-quality standards industrial packaging material. The procedure is carried out in a dust-free environment to maintain cleanliness from dirt, dust, or any other foreign materials that compromise product quality. These fasteners are prepared for shipping once careful attention has been paid to all details. They reach customers in excellent condition, regardless of distance.
Because of their resilience, these fasteners are indispensable in situations where failure is not an option. You will find them securing components within chemical processing plants, oil and gas refineries, and power generation facilities, where they face constant exposure to aggressive acids, chlorides, and extreme temperatures. They are also the preferred choice in architectural projects in coastal areas, marine hardware, and high-temperature exhaust systems, providing the assurance that structures and equipment will remain securely bound together for years to come.
