In the bustling industrial landscape of Manama, Niazi Stainless has established itself as a trusted source for premium stainless steel solutions. We specialize in providing high-integrity Stainless Steel 321/321H Forged Fittings, engineered to meet the rigorous demands of various sectors. Our commitment lies in delivering components that offer superior performance and longevity, ensuring your projects benefit from unmatched reliability and efficiency right from the heart of Bahrain.
The strength of 321/321H fittings comes from their specific composition, which is stabilized with titanium to resist carbide precipitation. This gives them excellent mechanical properties, including high tensile strength and good creep resistance, especially in the 321H grade with its elevated carbon content. They maintain exceptional corrosion resistance in a wide temperature range, making them mechanically robust for challenging environments.
Specifications ASTM A182 & ASME SA182
Standard ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Class 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type Socketweld Fittings, Screwed-Threaded Fittings
Forged Fittings Items : 45 Deg Elbow, 90 Deg Elbow, Forged Tee, Union, Full Coupling, Half Coupling, Cross, Cap, Swage Nipple, Plug, Bush, Welding Boss, Hexagonal Nipple etc.
Type Socketweld Fittings, Screwed-Threaded Fittings
Grade 321 / 321H UNS (S32100, S32109), DIN (1.4541, 1.4878)
| Grade | C | Mn | Si | P | S | Cr | N | Ni | Ti |
| SS 321 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 19.00 | 0.10 max | 9.00 – 12.00 | 5(C+N) – 0.70 max |
| SS 321H | 0.04 – 0.10 | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 19.00 | 0.10 max | 9.00 – 12.00 | 4(C+N) – 0.70 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1457 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
At Niazi Stainless, each stainless steel 321/321H forged fitting undergoes rigorous testing for excellent quality and performance. Our products are certified to meet international standards, including ISO and ASTM. Tests include material authentication, water testing and non-destructive analysis to ensure durability, reliability and compliance for critical industrial applications around the world.

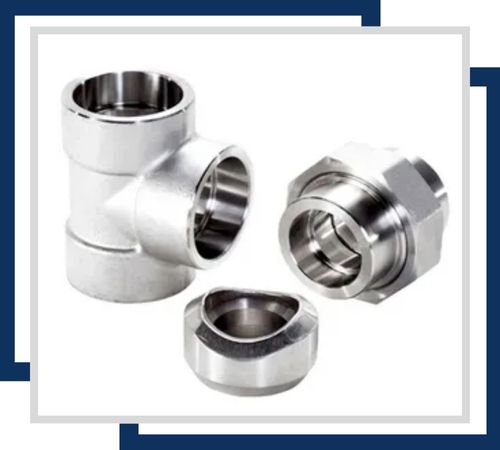

These fittings, available in sizes from 1/8″ to 4″, are designed for high-pressure applications with socket weld connections. They offer excellent resistance to oxidation and corrosion due to their high chromium and nickel content. Ideal for elevated temperature environments.

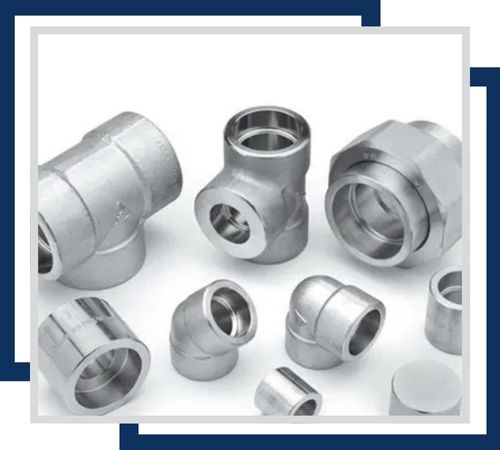

Threaded fittings in 321 stainless steel come in sizes ranging from 1/8″ to 6″. They provide superior resistance to intergranular corrosion, making them suitable for high-temperature and pressure applications. The threaded design ensures a secure, leak-proof connection.

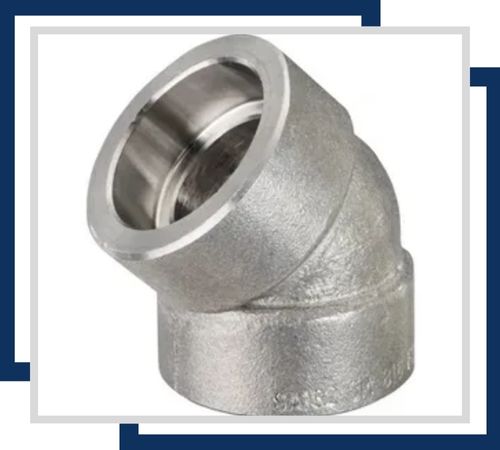

This 45-degree elbow, available from 1/2″ to 4″, is used to change the direction of piping. It maintains high corrosion resistance and strength under elevated temperatures, making it suitable for critical, high-stress applications.

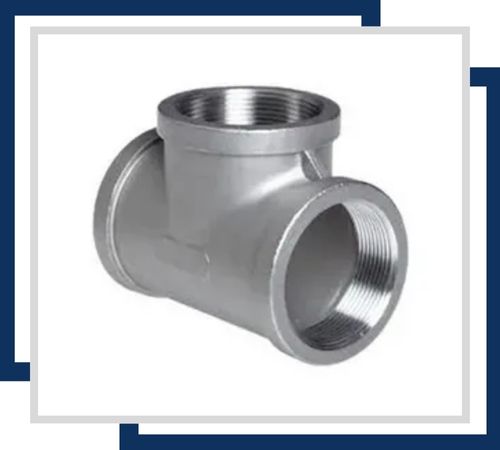

The threaded tee, with sizes from 1/8″ to 6″, allows for branch connections at a 90-degree angle. It is designed for high resistance to heat and corrosive environments, ensuring reliability and durability in demanding conditions.

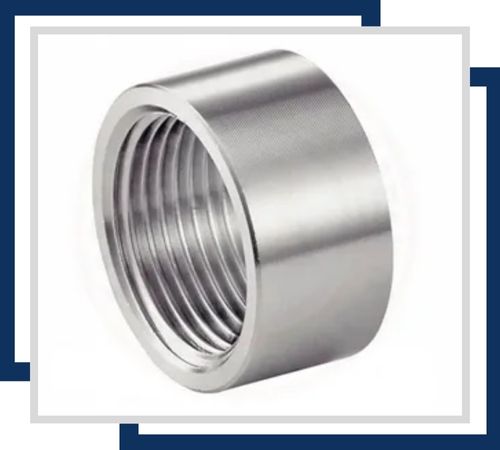

Available in sizes ranging from 1/8″ to 4″, this half coupling provides a secure connection between two pipes. It is crafted to withstand oxidation and corrosion, making it ideal for high-temperature applications.

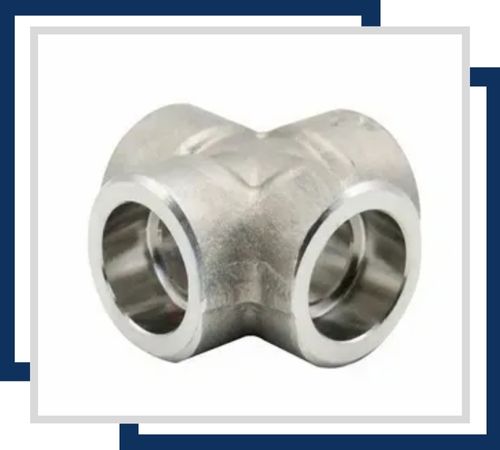

The socket weld cross, available from 1/2″ to 4″, connects four pipes at right angles. It features high resistance to thermal and chemical stresses, ensuring long-lasting performance in extreme conditions.
These forged fittings are essential in environments where high temperatures and corrosion are a constant challenge. You will find them performing reliably in the petrochemical industry, within power generation plants, and in the intricate piping of oil and gas refineries. They are also crucial for aircraft exhaust systems and industrial heat exchangers, proving their worth wherever strength and stability under thermal stress are non-negotiable.
