Niazi Stainless, a reputable manufacturer and supplier based in Manama, Bahrain, specializes in top-notch Stainless Steel 347/347H Sheets and Plates that are crafted to withstand the demanding conditions of high temperatures and corrosive environments. With a strong dedication to quality, Niazi Stainless delivers products that blend durability, precision, and fabrication that meets international standards. Their SS 347/347H Sheets and Plates are well-known for their remarkable thermal stability, resistance to intergranular corrosion, and impressive longevity. Catering to a variety of industries throughout Bahrain and the Gulf region, Niazi Stainless consistently provides dependable stainless steel solutions, supported by professional service and reliable product performance.
The Stainless Steel 347/347H Sheets and Plates are made from a mix of chromium, nickel, and niobium stabilizers, which help prevent carbide precipitation and boost corrosion resistance. The increased carbon content in 347H enhances its strength at high temperatures and improves creep resistance. These sheets and plates boast excellent tensile strength, good ductility, and robust resistance to oxidation and thermal fatigue. Their mechanical stability at elevated temperatures makes them perfect for continuous service applications. Plus, they offer reliable weldability and formability, making fabrication for complex industrial uses a breeze.
Stainless Steel Sheets and Plates Specification : ASTM A240 / ASME SA240
Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Surface Finishing : Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc.
| C | Cr | Mn | Ni | P | S | Si | Cb/Ta | |
|---|---|---|---|---|---|---|---|---|
| 347 | 0.08 max | min: 17.0 max: 20.0 | 2.0 max | min: 9.0 max: 13.0 | 0.04 max | 0.30 max | 0.75 max | min:10x C max: 1.0 |
| 347H | min: 0.04 max: 0.10 | min: 17.0 max: 20.0 | 2.0 max | min: 9.0 max: 13.0 | 0.03 max | 0.30 max | 0.75 max | min:10x C max: 1.0 |
| Grade | Tensile Strength ksi (MPa) min | Yield Strength 0.2% ksi offset ksi (MPa) min | Elongation (% in 50mm) min | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
|---|---|---|---|---|---|
| 347/347H | 75 (515) | 30 (205) | 40 | 201 | 95 |
Contact us to get a quick quote for your requirement.

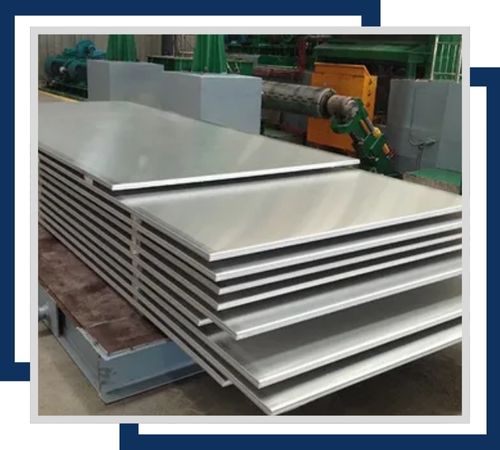

Known for excellent corrosion resistance, these sheets are produced through hot rolling. They are available in thicknesses from 3mm to 50mm and widths up to 2000mm, providing durability in high-temperature environments and are used in heavy-duty applications

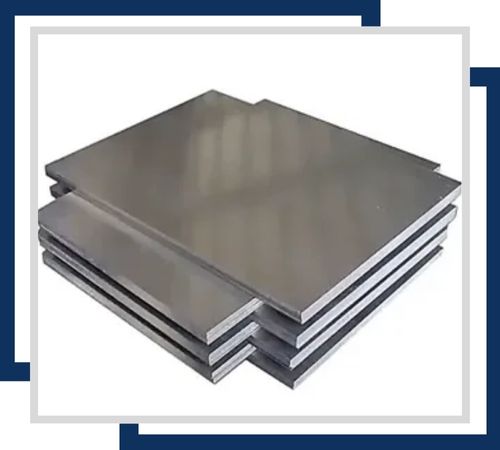

These plates are cold-rolled for a smooth finish and have superior corrosion resistance. They are available in thicknesses ranging from 0.5mm to 12mm and widths up to 1500mm, which is ideal for precision applications and structural components.

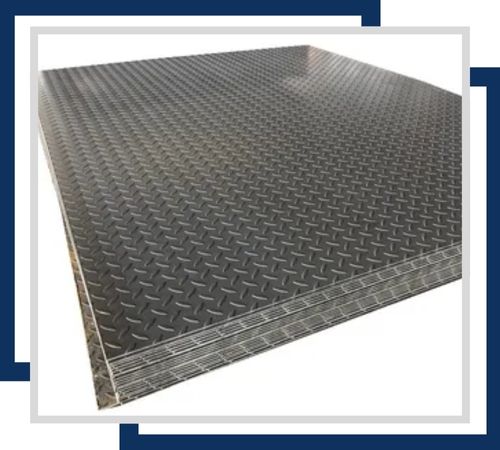

These plates offer excellent corrosion resistance, with a patterned surface for better traction and safety. They are available in various thicknesses, from 1.5mm to 6mm, and up to 1500mm in width, which makes them useful for flooring and industrial applications.

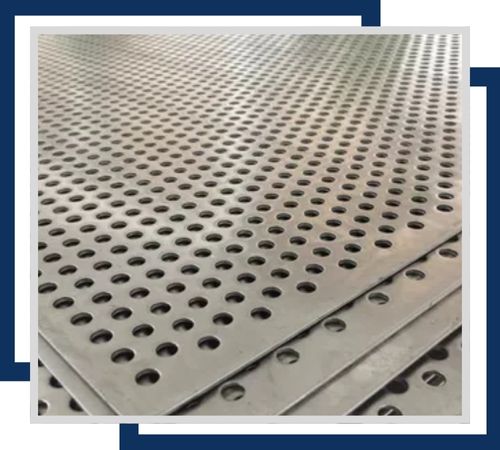

Offering high corrosion resistance, the sheets are perforated in a variety of hole patterns to achieve ventilation and aesthetics. Typical thicknesses vary between 0.5mm to 6mm, while the width may be up to 2000mm for filter applications and decorative panels.

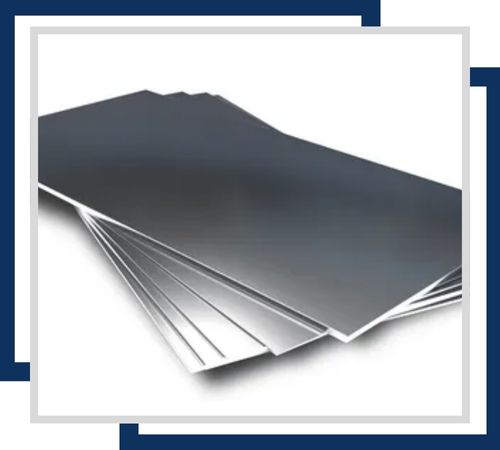

The shim sheets have excellent corrosion resistance. Thickness can range from 0.1mm to 2mm, width up to 1000mm, and are precision cut for exact measurements. They are used where fine adjustments are necessary.

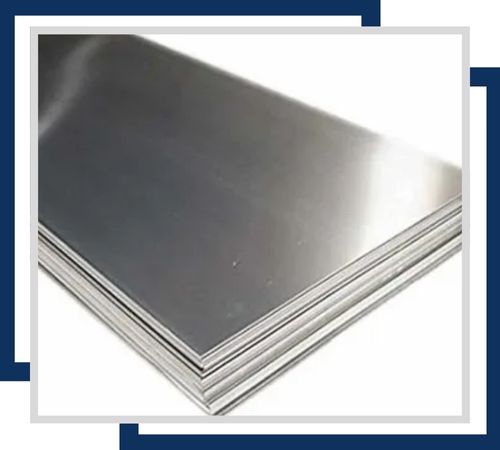

These plates feature outstanding corrosion resistance, and have a polished surface for enhanced appearance and cleanliness. They are available in widely used thicknesses that range from 3mm to 25mm and widths up to 2000mm. They find applications mainly in decorative and sanitary use.
Niazi Stainless will provide customers with an unmatched customer experience based on complete documentation about our superior Stainless Steel 347 and 347H sheets and plates. Essential documents including commercial invoices, packing lists, fumigation certificates, heat treatment charts, quality assurance plans, and NABL-approved lab test reports shall be provided from time to time by us in our products that ascertain the genuity and exceptional quality of products supplied to the valuable customers. Our Stainless Steel 347/347H sheets and plates also include a test certificate: MTC as per EN 10204/3.1b, PMI Test Certificates, 100% radiography test reports, and Third Party Inspection Certificates, in regard to our strict quality commitment toward our valued clients.
Stainless Steel 347/347H Sheets and Plates are extensively utilized in industries that demand strength and stability in high-temperature settings. They’re commonly found in petrochemical plants, refineries, and power generation facilities, serving as essential components like heat exchangers, boiler casings, and furnace parts. Their resistance to intergranular corrosion makes them particularly suitable for chemical processing environments and high-temperature gaskets. Additionally, SS 347/347H sheets and plates are employed in aircraft exhaust systems, food processing machinery, and pharmaceutical equipment, where hygiene, durability, and heat resistance are crucial. Their exceptional mechanical properties and corrosion resistance make them a top choice for these demanding applications.
