Niazi Stainless, a reputable manufacturer and supplier located in Manama, Bahrain, is dedicated to providing top-notch Stainless Steel 420 Sheets and Plates tailored for a variety of industrial applications. Renowned for their precision engineering and unwavering commitment to quality, this company delivers products that boast remarkable strength, durability, and resistance to corrosion. With a strong emphasis on customer satisfaction, Niazi Stainless guarantees reliable performance, competitive pricing, and prompt delivery. Their Stainless Steel 420 Sheets and Plates are a popular choice for projects that require exceptional hardness, wear resistance, and longevity. Thanks to their dedication to innovation and excellence, they have become a go-to partner for industries throughout Bahrain and beyond.
Stainless Steel 420 Sheets and Plates are martensitic stainless steel products primarily made up of chromium (12–14%), carbon (0.15–0.40%), along with trace elements like manganese and silicon. They are known for their impressive hardness, tensile strength, and moderate resistance to corrosion, particularly after undergoing heat treatment. This material boasts a tensile strength of about 700 MPa and good impact resistance, making it ideal for challenging environments. These sheets and plates also offer excellent machinability in their annealed state and achieve improved mechanical properties after quenching and tempering.
Stainless Steel Sheets and Plates Specification : ASTM A240 / ASME SA240
Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Surface Finishing : Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc.
| Grade | C | Mn | Si | P | S | Cr | Ni |
|---|---|---|---|---|---|---|---|
| 420 | 0.15 max | 1.00 max | 1.00 max | 0.04 max | 0.03 max | min: 12.0 max: 14.0 | – |
| Tempering Temperature (°C) | Tensile Strength (MPa) | Yield Strength 0.2% Proof (MPa) | Elongation (% in 50mm) | Hardness Brinell (HB) |
|---|---|---|---|---|
| Annealed * | 655 | 345 | 25 | 241 max |
| 399°F (204°C) | 1600 | 1360 | 12 | 444 |
| 600°F (316°C) | 1580 | 1365 | 14 | 444 |
| 800°F (427°C) | 1620 | 1420 | 10 | 461 |
| 1000°F (538°C) | 1305 | 1095 | 15 | 375 |
| 1099°F (593°C) | 1035 | 810 | 18 | 302 |
| 1202°F (650°C) | 895 | 680 | 20 | 262 |
Contact us to get a quick quote for your requirement.

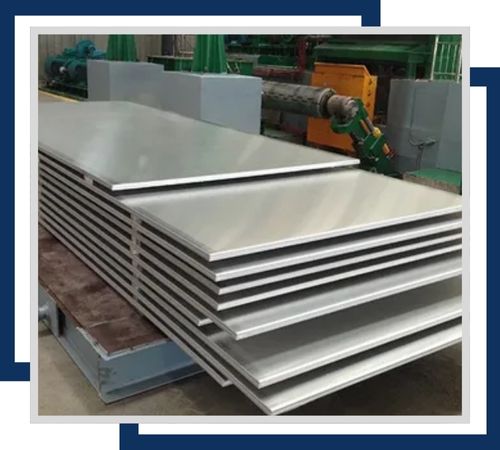

These are stainless steel 420 hot rolled sheets that can offer excellent corrosion resistance and a durability that no other material could. They range from 3mm to 12mm thickness and are most suitable for any application that calls for high strength and good machinability.

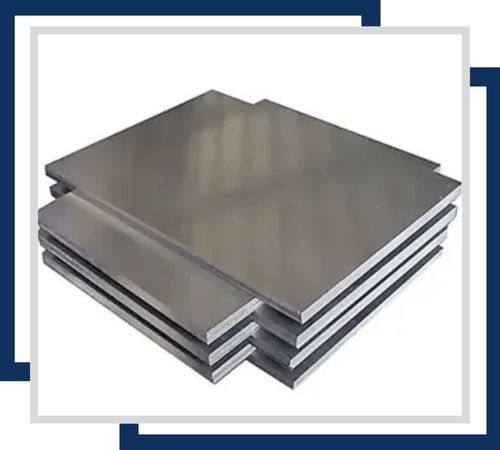

Stainless Steel 420 cold rolled plates offer excellent corrosion resistance and a bright finish. These plates are available in thicknesses ranging from 0.5mm to 6mm and are used in precision applications where dimensional accuracy and fine surface finish are critical.

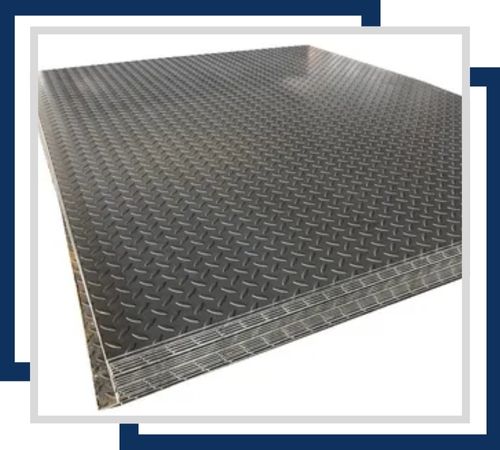

Stainless Steel 420 chequered plates combine excellent corrosion resistance with a textured surface for slip resistance. They are available in thicknesses from 2mm to 8mm and various patterns, and are widely used in flooring and safety applications.

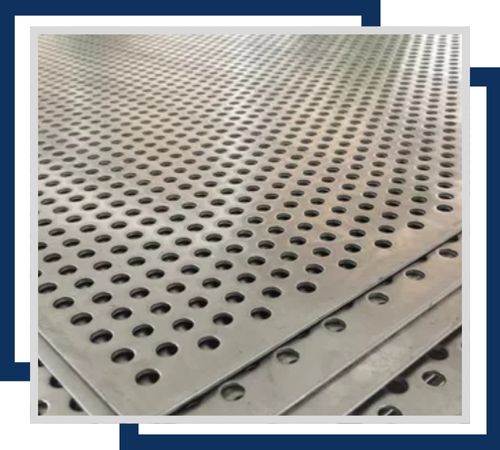

Stainless Steel 420 perforated sheets are corrosion-resistant and have uniform holes for ventilation and aesthetics. They are available in thicknesses from 1mm to 5mm and are used in filtering and architectural applications.

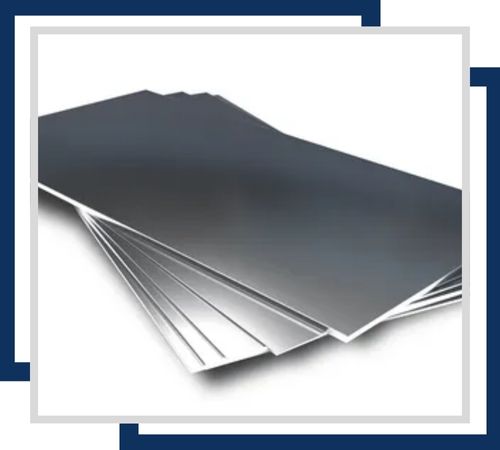

Stainless Steel 420 shim sheets are very corrosion resistant and precise. Generally available in the thickness of 0.1mm to 1mm, these are used for precise spacing and alignment in many engineering and manufacturing applications.

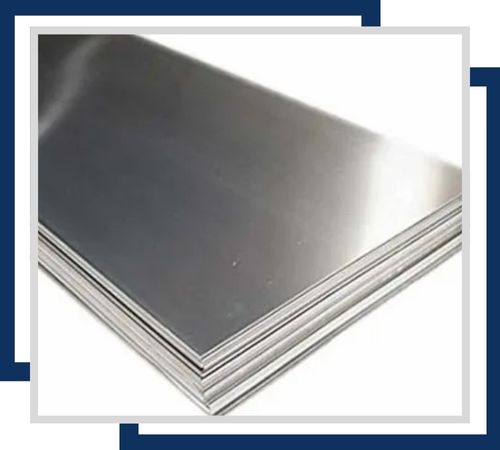

Stainless Steel 420 polished plates have excellent corrosion resistance and a reflective finish. Available in thicknesses ranging from 1mm to 10mm, they are used for decorative and high-visibility applications where aesthetic quality and resistance to oxidation are critical.
Niazi Stainless is highly concerned with the customer experience and delivers that with adequate documentation of its premium-quality Stainless Steel 420 Sheets and Plates. We deliver to our clients the necessary documents like a commercial invoice, packing list, fumigation certificate, heat treatment chart, quality assurance plan, and NABL-approved lab test report. These documents validate the genuineness and superior quality of our products and, therefore, ensure confidence in our valued customers. In addition, we provide our Stainless Steel 420 Sheets and Plates with different test certificates, including MTC according to EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificate, reflecting our customer-first approach and dedication to excellence.
Across various industries that require high hardness and wear resistance, Stainless Steel 420 Sheets and Plates are widely utilized. They are often found in the production of cutlery, surgical instruments, and precision tools due to their outstanding edge retention. In industrial applications, they are used in pump shafts, valve components, and mechanical parts that face abrasion. The automotive and aerospace sectors also rely on them for structural and functional components that demand durability. Furthermore, these sheets and plates are well-suited for chemical processing equipment, oil and gas applications, and marine fittings where moderate corrosion resistance and high mechanical performance are essential.
